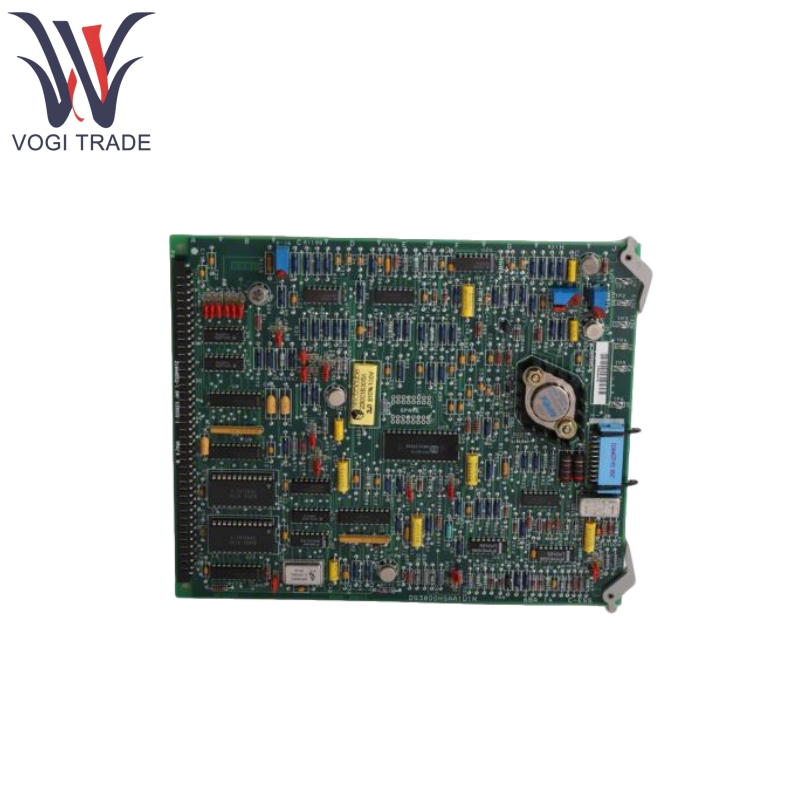

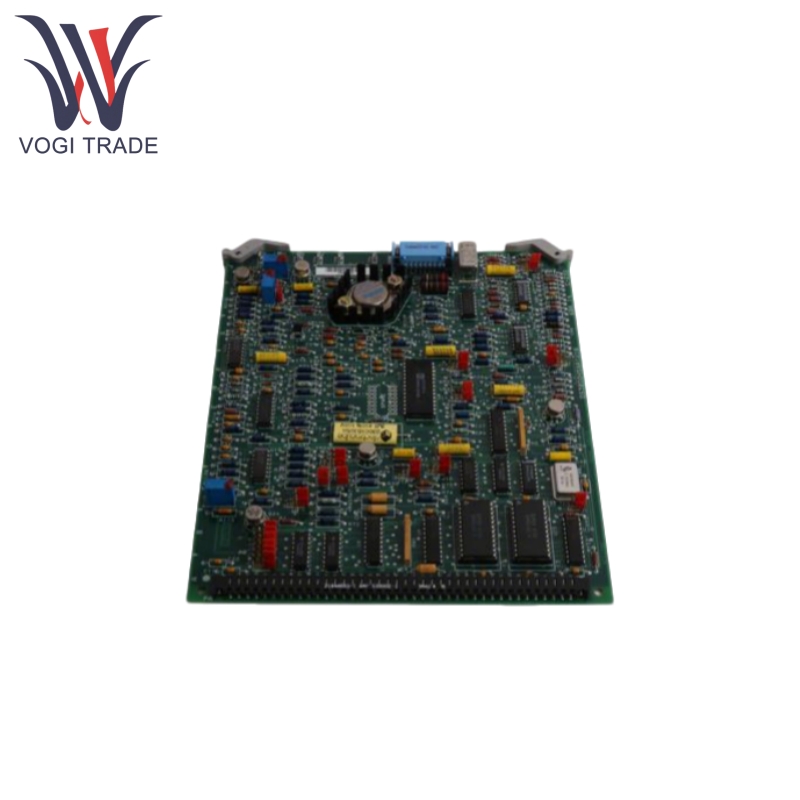

GE DS3800HSAA1U1N

Product Features

GE DS3800HSAA1U1N integrates an analog/digital converter (ADC) and a digital/analog converter (DAC) to support multi-channel signal input and output.

GE DS3800HSAA1U1N has 3 built-in trimming resistors for calibrating the gain and offset of the output signals to ensure high-precision control.

GE DS3800HSAA1U1N supports RS-485 and Ethernet interfaces and is compatible with Modbus protocol for data interaction with host computer or other control systems.

GE DS3800HSAA1U1N is equipped with an EEPROM socket for storing firmware and configuration parameters, and supports on-site firmware update.

GE DS3800HSAA1U1N is equipped with over-voltage and over-current protection circuits, as well as temperature monitoring functions to ensure stable operation of the module in harsh environments.

GE DS3800HSAA1U1N adopts pluggable connectors for easy maintenance and replacement, and the circuit board surface is coated with moisture-proof coating to adapt to industrial-grade environment.

Product Using Principle

GE DS3800HSAA1U1N can receive digital commands from the controller and convert them into analog voltage or current signals through DAC to drive servo motors or hydraulic valves.

GE DS3800HSAA1U1N can also collect analog feedback signals from sensors and convert them into digital signals through ADC for controller analysis.

GE DS3800HSAA1U1N has a built-in PID algorithm to process the feedback signals and dynamically adjust the output signals to eliminate errors and realize accurate tracking.

GE DS3800HSAA1U1N can store the calibration parameters through EEPROM and support manual adjustment of the field fine-tuning resistors to ensure system consistency.

GE DS3800HSAA1U1N can exchange data with the upper computer or other modules via RS-485 or Ethernet to support remote monitoring and fault diagnosis.

Product Parameter

The following detail is for GE DS3800HSAA1U1N SERVO AMP BOARD.
