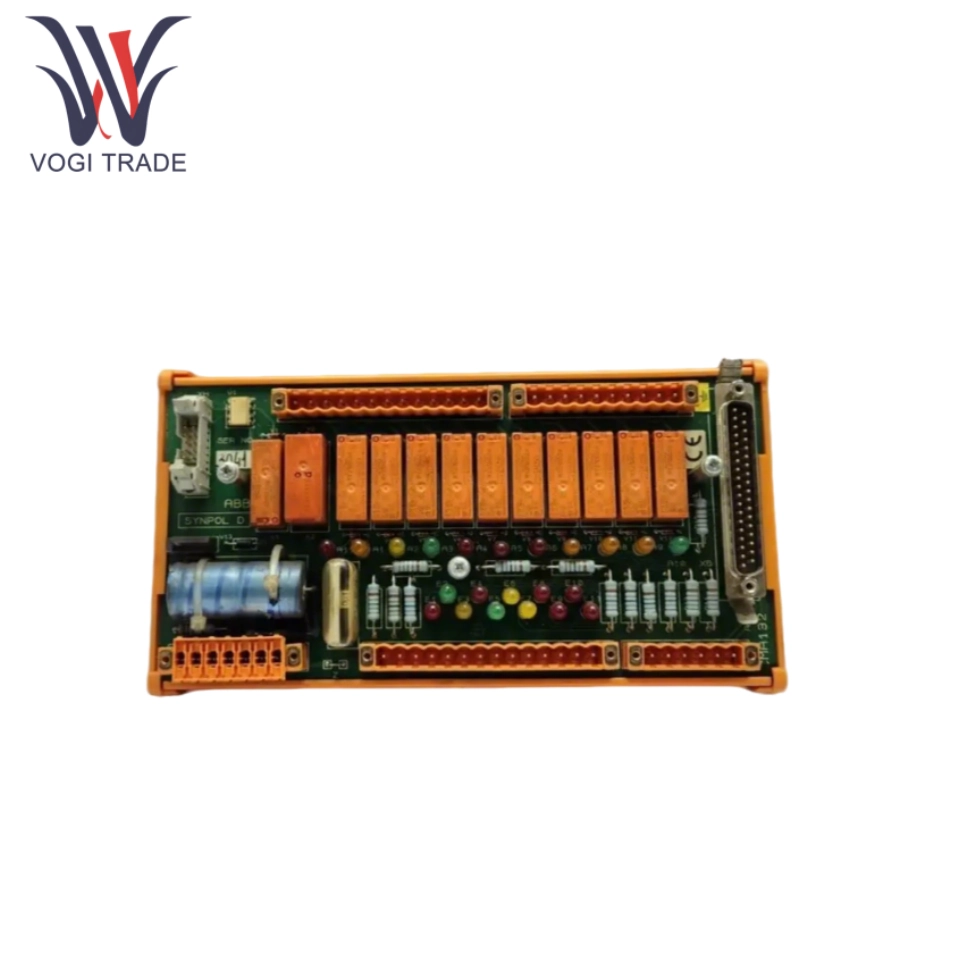

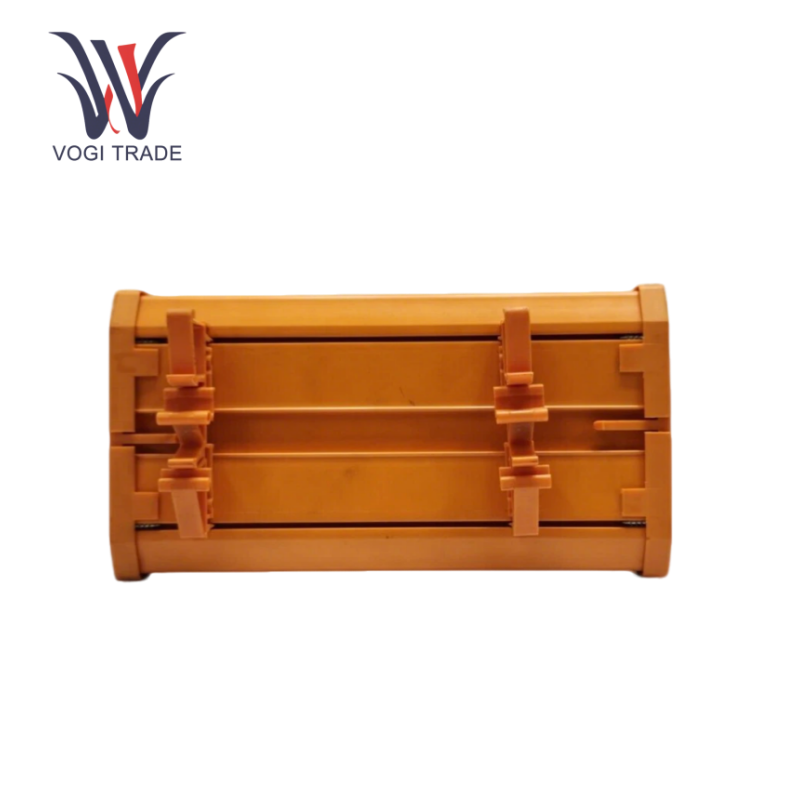

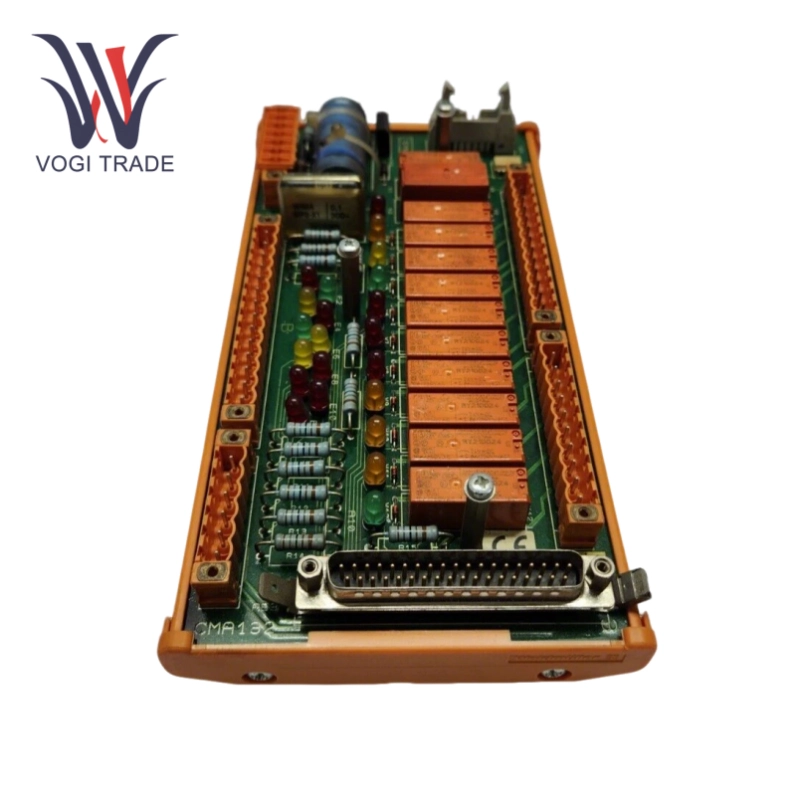

ABB CMA132 3DDE300412

Technical Parameters

Adaptable voltage: 24V DC/110V DC/220V AC

Current capacity :5A/10A

Output frequency: 50kHz

Terminal configuration: Support 8/12/16-way terminal expansion, standard RJ45 interface, optional DB9/DB25 adapter cable

Protection performance: Insulation resistance ≥100MΩ, withstand voltage level 1000V-2000V

Working temperature -40°C~85°C ,

Protection level IP20/IP65

Communication protocol: Support Modbus, Profibus, integrated PROFIBUS PA interface

Key Features

1. Signal transfer and control

• Transmit the voltage, current, temperature and other signals of the generator to the protection device, and forward the control instructions to the actuator

• ABB CMA132 3DDE300412 support active/passive signal mode switching, adapt to different power supply requirements

2. Industrial-grade reliability

• Using flame-retardant materials, anti-electromagnetic interference complies with IEC61000-4 standards, and passed CE certification

• ABB CMA132 3DDE300412 built-in 15KV ESD protection and photoelectric isolation, adapt to high temperature/high humidity environment

3.Flexible configuration and expansion

• ABB CMA132 3DDE300412 support PROFIBUS PA bus address setting , through DIP switch or menu operation

• Expandable input/output modules, compatible with PC/104 architecture I/O cards

4.Maintenance convenience

• Compact design, supports rail/screw installation

• Offline programming mode is provided, and debugging does not affect the operation of the device

5.Safety and compliance

• Supports network layer encrypted communication and realizes two-way authentication between the master station and the terminal

• Split power supply design, supports automatic switching of dual power supplies to ensure stable power supply
