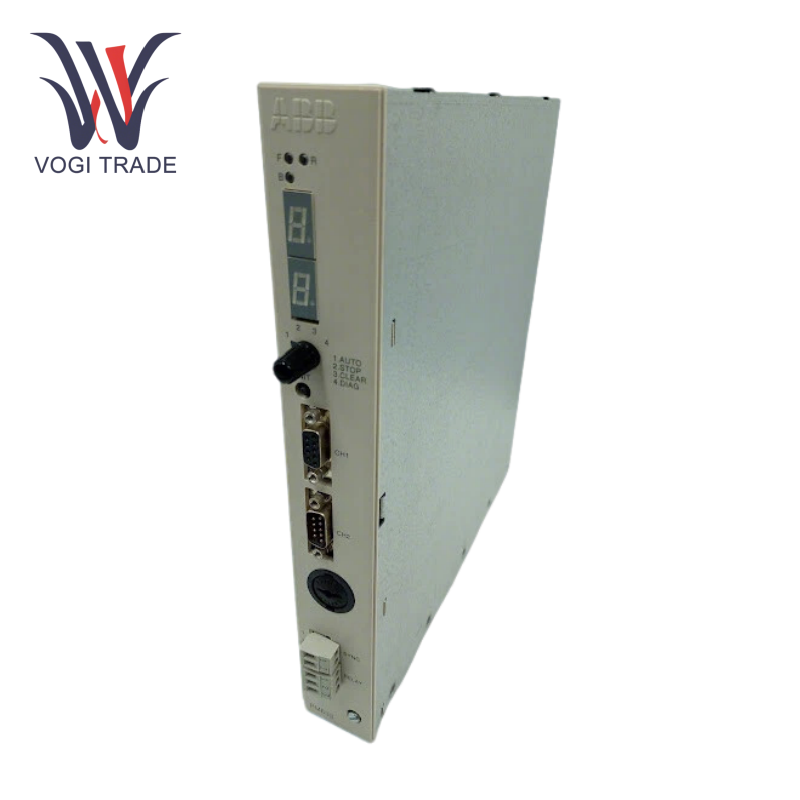

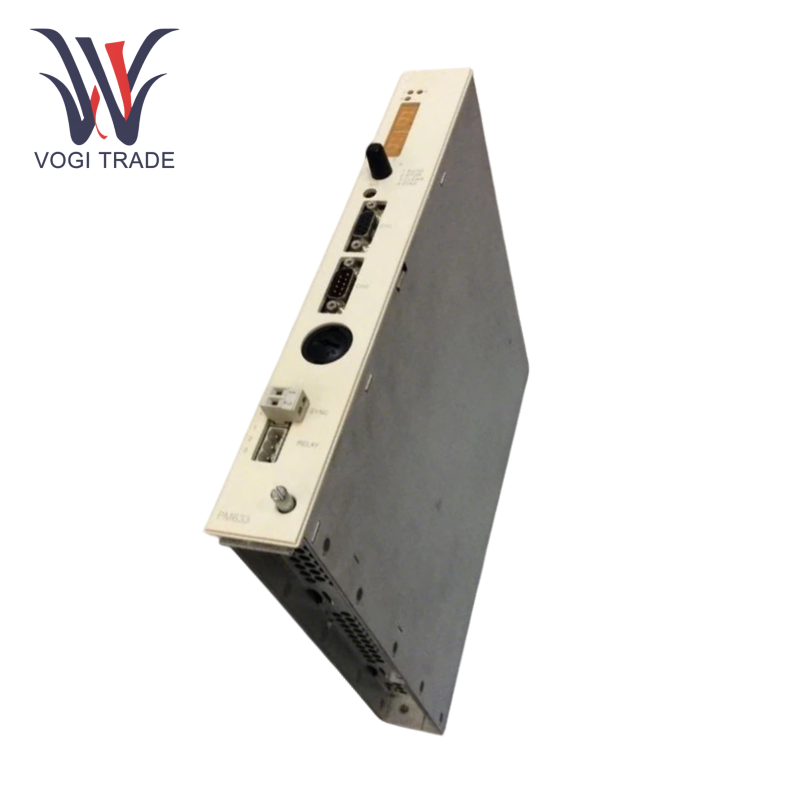

ABB PM633 3BSE008062R1

Technical parameters

Processor: MC68340, main frequency 25MHz.

Power input: 24V DC (allowable range ±10%).

Typical power consumption ≤20W.

Communication interface: Integrated Ethernet, RS-232, CAN and other protocols, support interaction with PLC and DCS systems.

Operating temperature: 0°C to +50°C.

Protection level: IP20/IP30.

Expansion capability: Supports local expansion of up to 10 I/O modules (firmware V1.2 and above), and distributed substations can expand 7 modules.

Functional features and working principle

Control actuator: ABB PM633 3BSE008062R1 controls motors, valves and other equipment through relay output signals, and supports high-power drive.

Signal processing: Built-in high-speed ADC (analog-to-digital converter), which can amplify digital signals to drive external devices.

Fault diagnosis: ABB PM633 3BSE008062R1 monitors the relay status in real time, identifies faults such as disconnection and short circuit, and reports them to the system to improve stability.

Redundancy and safety: ABB PM633 3BSE008062R1 supports dual-machine hot standby configuration, with a switching time of ≤50ms to ensure control continuity.

Compatible supporting products

I/O modules: such as XIO16T (digital input/output), XMV16 (vibration monitoring), support flexible expansion.

Communication modules: such as RAPI-01C, enhance protocol compatibility (such as PROFINET, Modbus).
